AMD

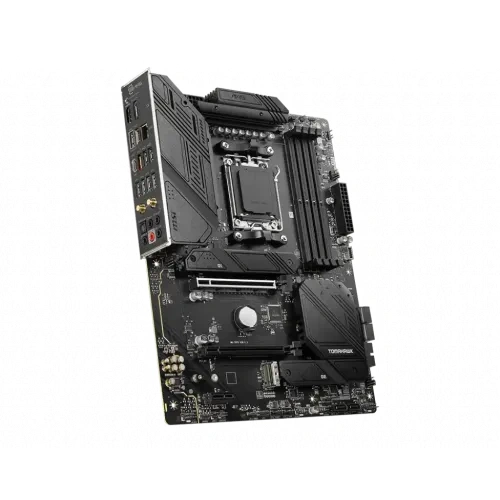

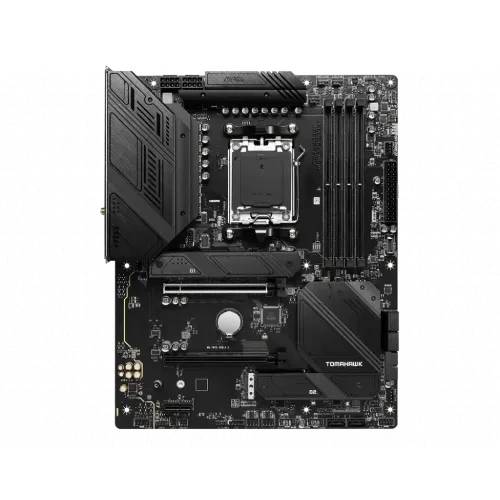

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
03 years
৳ 30,800
৳ 32,000
Save ৳ 1,200
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Supported CPU
Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B650
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel High Performance Audio, Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
PCI
2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot, PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Memory Type
DDR 5
Memory Slots
4 DIMMs
Supported Memory
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory
128GB
Graphics
1x HDMI 1x DisplayPort, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.2
Supported Storage
3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Jack
Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan, 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C, 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Special Features
4x EZ Debug LED
Manufacturing Warranty
03 years
