ASUS

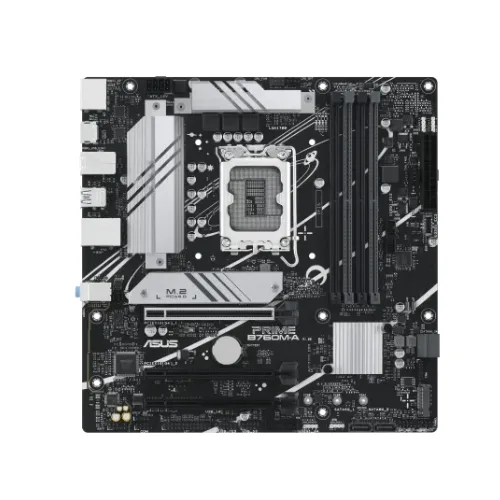

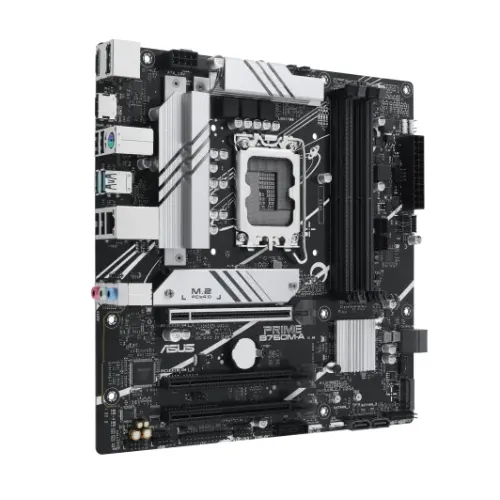

Asus PRIME B760M-A mATX Motherboard
3 Years
৳ 20,500
৳ 22,500
Save ৳ 2,000
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Brand
Asus
Model
PRIME B760M-A
Warranty
3 Years
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core,, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
- Audio Shielding, - Dedicated audio PCB layers, - Premium audio capacitors, - Supports up to 24-Bit/192 kHz playback / Audio Features, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Realtek 7.1 Surround Sound High Definition Audio CODEC
PCI
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), Intel 13th & 12th Gen Processors., Intel B760 Chipset
M.2 Socket
Total supports 2 x M.2 slots
Memory Type
DDR5
Memory Slots
4 x DIMM
Supported Memory
(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/, 4 x DIMM slots, Max. 128GB, DDR5 7200+, 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4), 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
HDMI
2 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
1 x USB 2.0 header supports 1 additional USB 2.0 port, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 10 ports), Rear USB (Total 6 ports)
LAN Port (s)
1 x Realtek 2.5Gb Ethernet port
Supported Storage
4 x SATA 6Gb/s ports, Intel 13th & 12th Gen Processors., M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack
3 x audio jacks
Internal I/O Ports
1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 24-pin Main Power connector, 1 x 4-pin CPU Fan header, 1 x 8-pin +12V Power connector, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x DisplayPort, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x PS/2 Keyboard/Mouse combo port, 1 x Realtek 2.5Gb Ethernet port, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x USB 2.0 header supports 1 additional USB 2.0 port, 1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x Wi-Fi Module, 2 x 4-pin Chassis Fan headers, 2 x HDMITM ports, 2 x M.2 slots (Key M), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 3 x Addressable Gen 2 headers, 3 x Audio jacks, 4 x SATA 6Gb/s ports, 4 x USB 2.0 ports (4 x Type-A), Back Panel I/O Ports, Fan and Cooling-related, Internal I/O Connectors, Miscellaneous, Power related, Storage related, USB
Special Features
- Aura RGB header - Addressable Gen 2 headers, - DIGI+ VRM - LANGuard, - M.2 heatsink - VRM heatsink design, - Overvoltage Protection - SafeSlot Core+, - ProCool, - Q-DIMM - Q-LED Core - Q-Sl, - Stainless-Steel Back I/O, ASUS 5X PROTECTION III, ASUS EZ DIY, ASUS Q-Design, ASUS Thermal Solution, Aura Sync
Bundled Software
- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving, - Digi+ VRM - PC Cleaner, AI Suite 3, Armoury Crate, ASUS CPU-Z, ASUS Exclusive Software, ASUS EZ DIY, Norton Deluxe (60 Days Free Trial) WinRAR, UEFI BIOS
