AMD

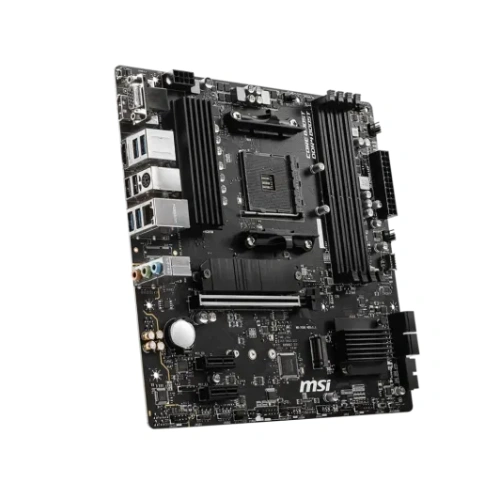

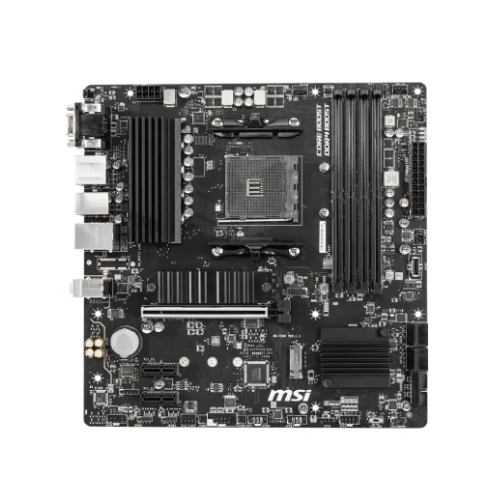

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
03 years
৳ 14,999
৳ 15,500
Save ৳ 501
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Supported CPU
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors*
Chipset
AMD B550
Form Factor
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
PCI
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
M.2 Socket
2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4, Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices, Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset)
Memory Type
Dual-channel memory architecture
Memory Slots
4x DDR4 memory slots
Supported Memory
1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE, Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory
128GB
Graphics
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz, 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
Max Shared Memory
16GB
HDMI
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)
1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
USB (s)
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through, AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)
1x Realtek 8111HN Gigabit LAN controller
Supported Storage
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor), M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices, Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key), 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector, 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper, 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector
TPM (Trusted Platform Module )
1 x TPM module connector
Special Features
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed., WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168-
Manufacturing Warranty
03 years
