AMD

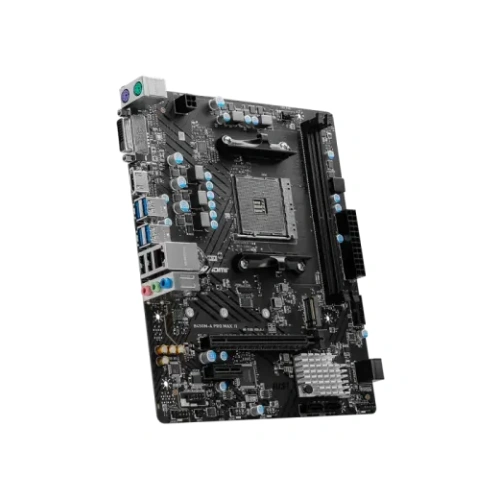

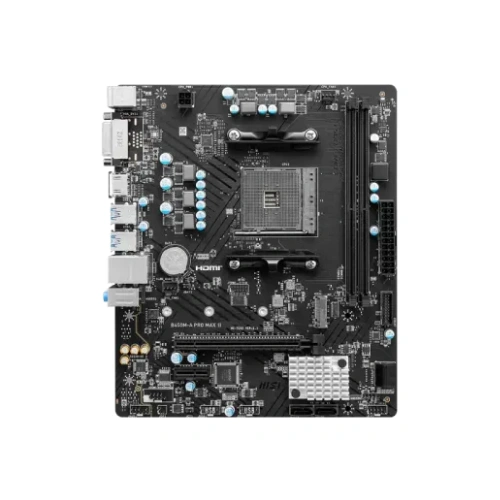

MSI B450M-A PRO MAX II AMD AM4 Motherboard
03 years
৳ 8,500
৳ 9,000
Save ৳ 500
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Supported CPU
2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega, Graphics desktop processors Socket AM4, Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series,
Chipset
AMD B450
Form Factor
mATX 200mmx236mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot, PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Memory Type
DDR4
Memory Slots
2
Supported Memory
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), Supports Dual-Channel mode Supports non-ECC, UDIMM memory, Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory
64GB
Graphics
1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz, 1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz
HDMI
1x HDMI
DVI-D (s)
1x DVI
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)
Realtek 8125 2.5Gbps LAN controller
Supported Storage
1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242, devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

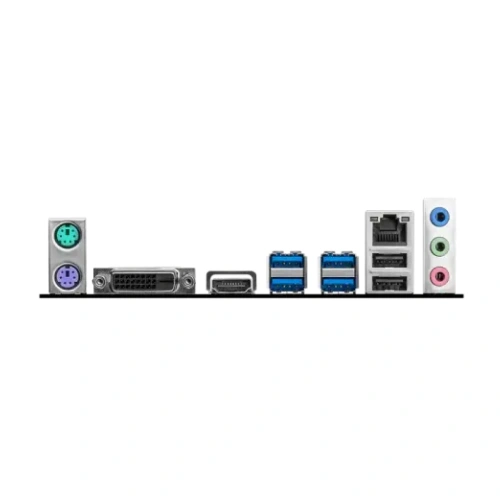

Internal I/O Ports
1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports, 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan, 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Manufacturing Warranty
03 years
