ASUS

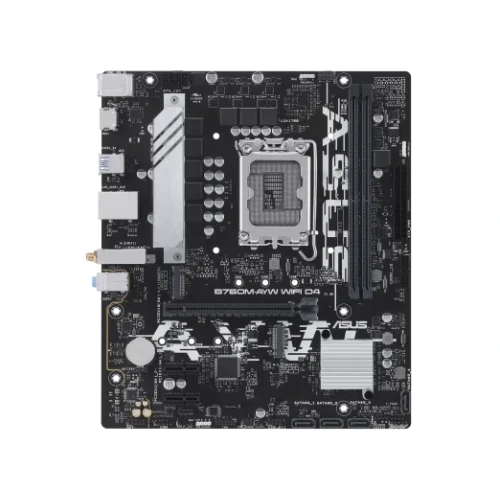

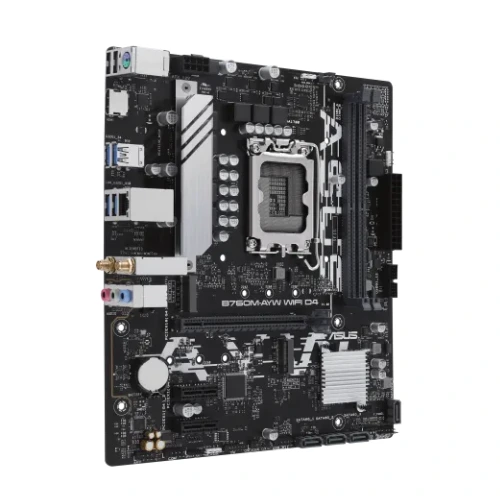

ASUS B760M-AYW D4 mATX With WiFi Motherboard
03 years
৳ 19,200
৳ 21,000
Save ৳ 1,800
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Brand
Asus
Model
B760M-AYW WIFI D4
Warranty
3 Years
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Audio Features, Audio Shielding, Dedicated audio PCB layers, Premium audio capacitors, Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports up to 24-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
PCI
1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots, Intel B760 Chipset, Intel Core Processors (14th & 13th & 12th Gen)
M.2 Socket
2 x M.2 slots
Memory Type
DDR4
Memory Slots
2 x DIMM
Supported Memory
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
64GB
Graphics
1 x HDMI port, Graphics specifications may vary between CPU types, Supports 4K@60Hz as specified in HDMI 2.1
HDMI
1 x HDMI
USB Port

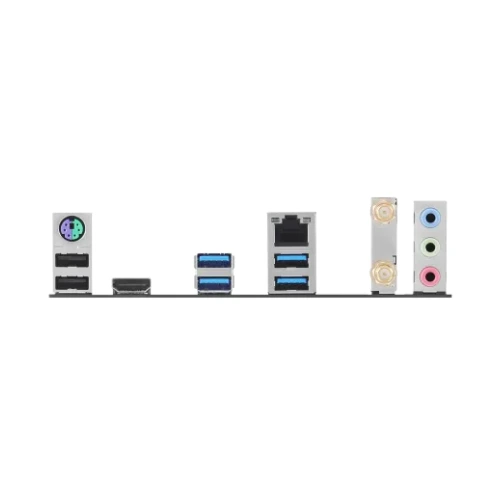

1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 ports (2 x Type-A）, 4 x USB 3.2 Gen 1 ports (4 x Type-A), Front USB (Total 4 ports), Rear USB (Total 6 ports)
LAN Port
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Bluetooth® v5.2, Supports 2.4/5GHz frequency band, Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio Jack
3 x audio jacks
Internal I/O Ports
1 x 10-1 pin System Panel header, 1 x 24-pin Main Power connector, 1 x 4-pin Chassis Fan header, 1 x 4-pin CPU Fan header, 1 x 8-pin +12V Power connector, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x Addressable Gen 2 headers, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Fan and Cooling related, Power related, Storage related
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O, ASUS EZ DIY - ProCool, ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - VRM heatsink design, Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
AI Suite 3 - DIGI+ VRM - PC Cleaner, Armoury Crate - Aura Sync - Fan Xpert - Power Saving, ASUS CPU-Z, ASUS Exclusive Software, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, MyASUS, Norton 360 Deluxe (60 Days Free Trial), UEFI BIOS, WinRAR
Manufacturing Warranty
03 years
